A.S.M.E. & Non Code Heads for Industry
Carbon & Stainless Steels and Non-Ferrous Alloy Materials
Stock Sizes from 6 5/8 – 72″ Available for Immediate Delivery
ASME 2:1 Semi-Elliptical
“Hot Formed”
Diameter: 6 5/8″ OD to 72″ OD
Thickness: up to 3″ NOM
“Cold Formed”
Diameter: up to 192″
Thickness: up to 1-1/4″ NOM

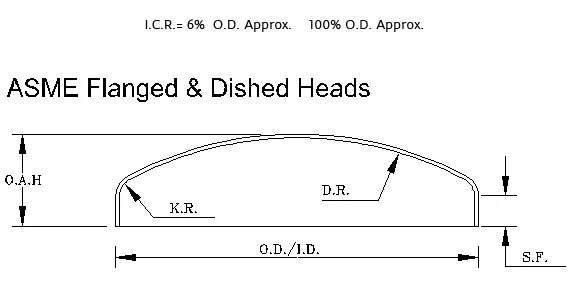

ASME Flanged & Dished
Diameter: up to 204″
Thickness: 10 GA – up to 1-1/4″ NOM

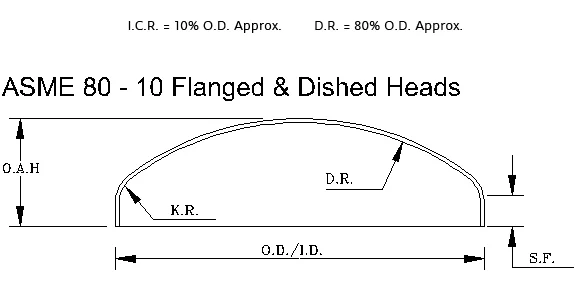

ASME 80 – 10
Flanged & Dished Heads
Diameter: up to 204″
Thickness: 10 GA – up to 1-1/4″ NOM
ASME High Crown
Flanged & Dished
Diameter: up to 204″ x up to 1 3/8″ NOM
Thickness: 10 GA – up to 1-1/4″ NOM
Standard
Flanged & Dished Heads
Diameter: 10″ – 204″
Thickness: 10 GA – 1-1/4″ NOM

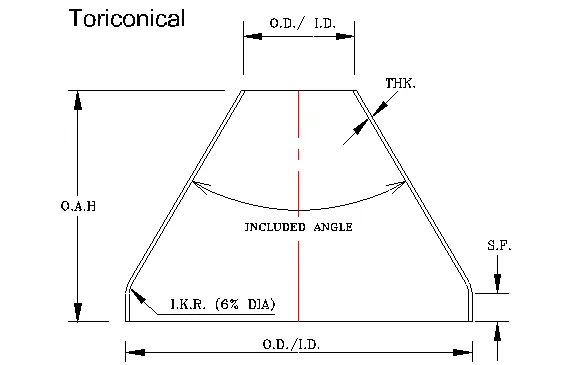

Toriconical
Diameter: 8″ – 192″
Thickness: 10 GA – 3/4″
Flared & Dished
Diameter: 6″ – 96″
Thickness: 10 GA – 2

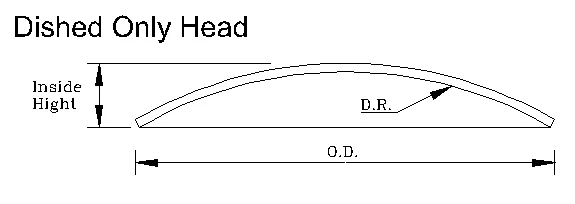

Dished Only
Diameter: 10″ – 204″
Thickness: 12 GA – 2″

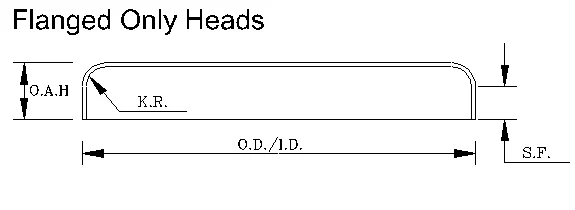

Flanged Only
Diameter: 20″ – 204″
Thickness: 10 GA – 1-1/4″ NOM
